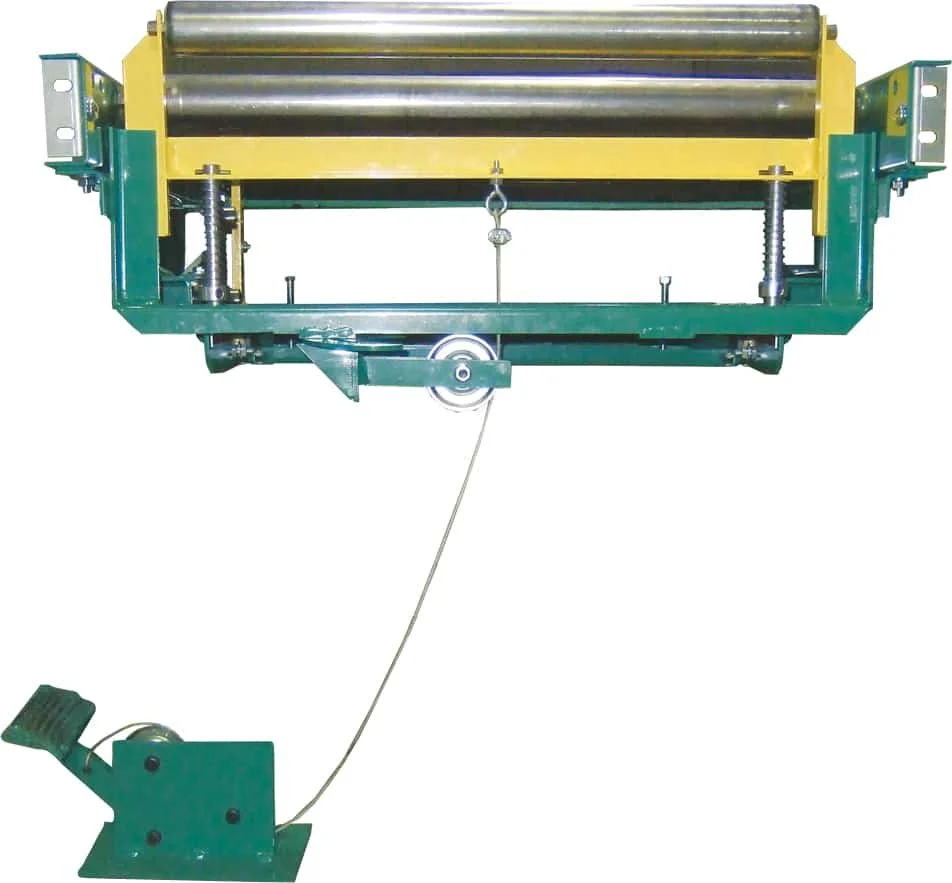

FOOT OPERATED BLADE / ROLLER STOP

Contact for Purchase

Applications / Features:

  • Foot Operated Stops are used where “hands-free” manual line control is required such as assembly work stations, shipping areas, etc.

  • Can be mounted to underside of models 138SR, 190SR, 20SR, 190CAP, 138CAP, 190ZPA.

  • Capacity – Blade – 75 Ibs., 1-3⁄8″ diameter roller – 50 Ibs., 1.9″ diameter roller – 150 Ibs. All are live load capacities @ 60 FPM.

    Operation – Foot operated lever to lower stop. Spring return to up position.

    Stop – Blade – 1⁄4″ steel plate – roller 1-3⁄8″ diameter x 18 gauge galvanized steel roller for 1-3⁄8″ conveyors. 1.9″ diameter x 16 gauge galvanized steel roller for 1.9″ and 2.0″ conveyors.

    Position – Supplied normally up. Can be supplied normally down – specify.

    Stroke – 1-1⁄2″ above roller.
