MODEL 138CAP

Contact for Purchase

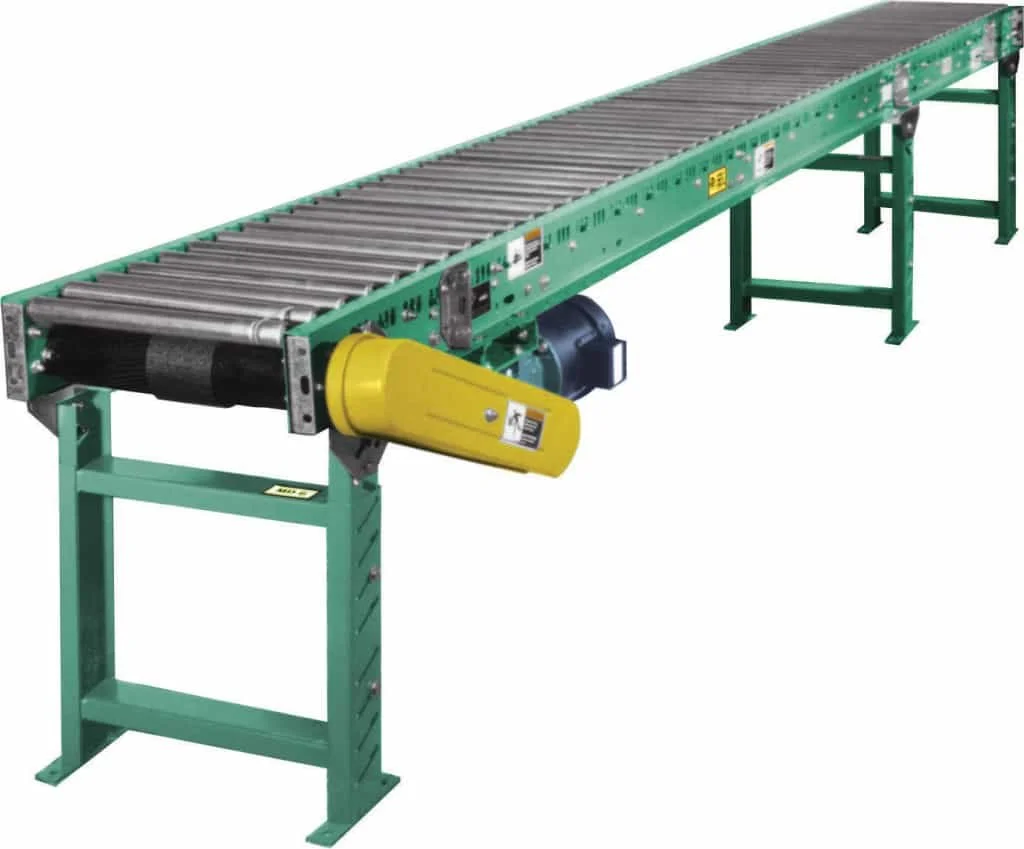

Industrial roller conveyor with a yellow safety guard and motor, green metal frame, and metal rollers for moving goods.

LIGHT DUTY MINIMUM PRESSURE ACCUMULATOR

Applications / Features:

  • Accumulates Light Boxes Tote Bins, Baskets, etc.

  • Minimum Back Pressure

  • Economical

  • Driving Belt – 4″ wide Black PVC 120 belt.

    Bed – Roller bed width between frames, 10″, 13″, 16″ and 22″. 5-1⁄2″ x 1-1⁄2″ x 12 gauge powder painted formed steel channel frame, bolted together with butt couplings and floor supports.

    Tread Rollers – 1-3⁄8″ diameter x 18 gauge galvanized tread rollers with 5⁄16″ hex shafts on 1-1⁄2″ and 3″ centers. Safety pop-out design prevents damage to product or harm to personnel if caught between belt and tread rollers.

    Pressure Rollers – 1-3⁄8″ diameter x 18 gauge galvanized pressure rollers with 5⁄16″ hex shafts on 6″ centers.

    X-Bracing – Frame Squaring device supplied on conveyors 40 feet and longer on every other bed section. X-bracing insures good product and belt tracking.

    Tail Pulley – 4″ diameter crowned with 13⁄16″ shaft.

    Drive Pulley – 4″ diameter crowned and fully lagged,with 1-3⁄16″ diameter shaft. Located at infeed end of conveyor.

    Snub Roller – 2″ diameter adjustable, located directly behind drive and tail pulley.

    Return Idler – 1.9″ diameter, adjustable, on 10’0″ centers.

    Floor Supports – 30″ to 44″ adjustable from floor to top of rollers. One support supplied at each end of conveyor and at each bed joint.

    Take-Up – Located at discharge end of conveyor, provides 12″ of belt take-up.

    Bearings – Sealed, prelubricated with cast iron housings.

    Speed Reducer – Heavy duty worm gear reducer.

    Motor – 1⁄2 HP 230/460-3-60 TE motor.

    Belt Speed – 60 FPM constant.

    Capacity – 100 pounds per foot.

  • Center Drive – Mounted below conveyor bed section. Can be placed most anywhere in conveyor length.

    Side Mounted Drive – End drive mounted to side of conveyor section. Specify side. Minimum elevation – 8″.

    Guard Rails – Adjustable channel, continuous channel, or solid steel guard rails available.

    Floor Supports – Lower or higher supports available.

    Ceiling Hangers – 1 ⁄2″ diameter threaded rods 8 feet long with locking nuts and mounting hardware. Other lengths are available.

    Motor – Single phase, energy efficient, explosion proof, etc. Other HP available.

    Belt Speed – Constant and variable belt speeds available.

    Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others.
