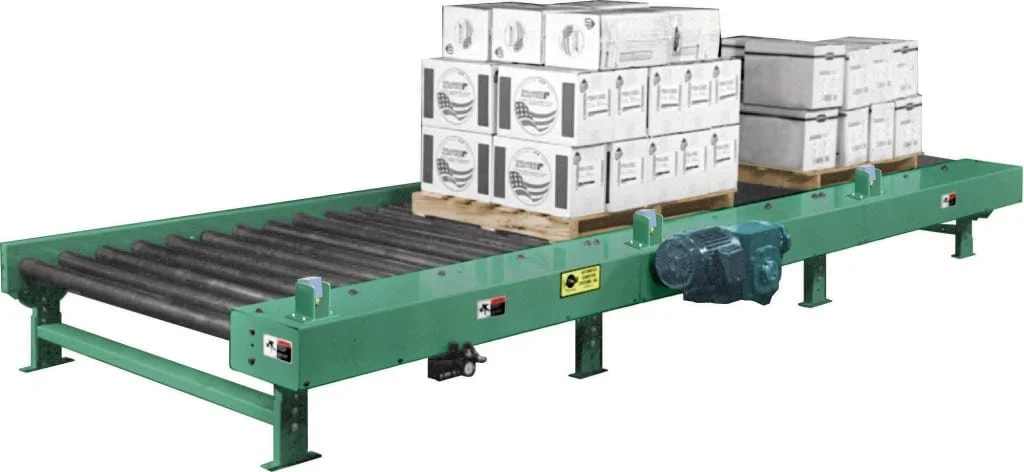

MODEL 251ACDE

Frame — Heavy duty 7″ deep x 4 gauge powder painted formed steel channel with heavy duty cross braces. Frames are bolted together with splice plates and floor supports.

Rollers — 2¼″ diameter x 11 gauge steel rollers, grease packed and labyrinth sealed bearings, 11⁄16″ hex shaft. Rollers are spaced on 4″ or 6″ centers, set 2¼″ low.

Floor Supports — Adjustable 18¾″ to 23⅜″ (HD-4) from floor to top of roller, for each end of conveyor and at each bed joint along with knee braces for each support. Supports on 5 foot centers, change with zone length.

Drive — Located near center of conveyor length, shaft mount motor and reducer.

Drive Chain — RC #40 chain used for roller-to-roller connections, RC #60 chain drives each zone. Chains are totally enclosed by metal guards.

Accumulation Zones — Standard zone lengths are 60″ long with a maximum of 30 zones per single drive. Each zone is driven by an air clutch and controlled by a photo eye sensor.

Motor — ¾ HP 230/460-3-60 TE motor.

Electrical Controls — 120 VAC input power supply.

Conveyor Speed — 30 FPM constant roller speed.

Capacity — 4000 pounds maximum unit load. Total conveyor live load not to exceed Load Capacity Chart (see catalog page).

Speed Reducer — Heavy duty, sealed worm gear, C-Face.

Bearings — Sealed pre-lubricated with cast iron housings.

Sensing Device — NEMA 1 photoelectric sensor in each zone detects presence of product and activates accumulation feature in trailing zone if upstream zone is occupied.

Power Supply — 120 VAC power supply controls accumulation feature with 24 VDC output. Power supply will control 50 accumulation zones.
