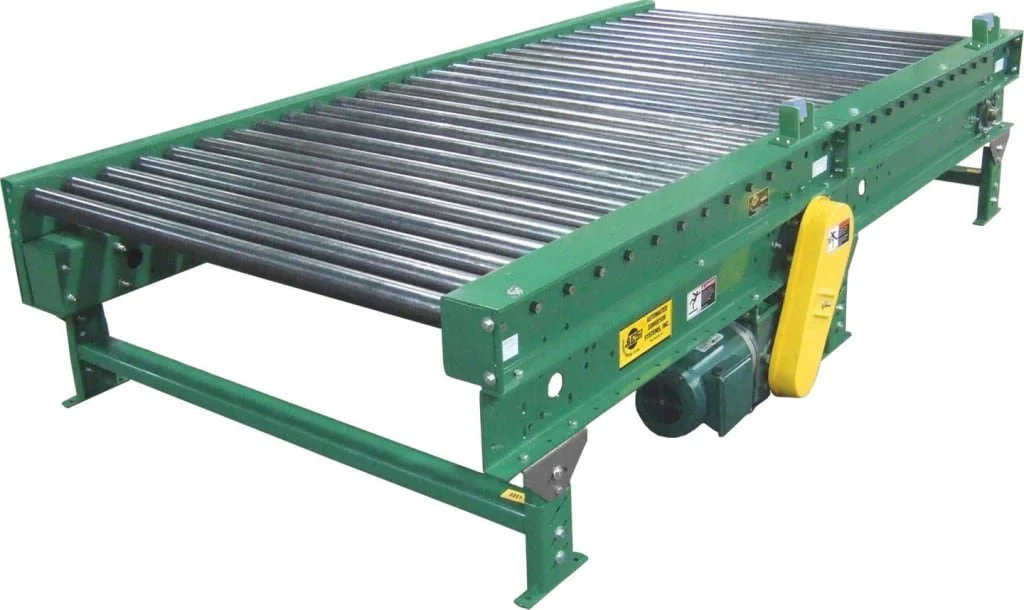

MODEL 251CDE

Frame – Heavy duty 12-1/2″ deep x 7 gauge powder painted formed steel channel with heavy duty cross braces. Frames are bolted with spice plates and floor supports.

Rollers – 2-1/2″ diameter x 11 gauge steel rollers, grease packed and labyrinth sealed bearings, 11/16″ hex shaft. Rollers are spaced on 4″ or 6″ centers, set 7/8″ low.

Floor Supports – Adjustable 25-5/8″ to 30-1/4″ (HD-4) from floor to top of roller, for each end of conveyor and at each bed joint along with knee braces for each support. Supports on 5 foot centers, change with zone length. Minimum elevation with standard drive location 24″.

Drive – Located near center of conveyor length, underneath conveyor frame.

Drive Chain – RC #40 for roller to roller connections, RC #60 chain drives each zone. Chains are totally enclosed by metal guards.

Accumulation Zones – Standard zone lengths are 60″ long with a maximum of 30 zones per single drive. Each zone is controlled by photo eye.

Sensing Device – NEMA 1 photoelectric sensor in each zone detects presence of product and activates accumulation feature in the trailing zone if upstream zone is occupied.

Motor – 3/4 HP 230/460-3-60 TE motor.

Electrical Controls – 120 VAC Input power supply. Power supply has an output of 24VDC, 4 amp maximum.

Power Supply – 120 VAC power supply controls accumulation feature with 24VDC output. Power supply will control 50 accumulation zones.

Conveyor Speed – 30 FPM constant roller speed.

Capacity – Minimum unit load – 50 pounds. 4000 pounds maximum unit load.

Speed Reducer – Heavy duty, sealed worm gear, C-Face reducer.

Bearings – Non-reversing sealed pre-lubricated with cast iron housing

Filter/Regulator – Mounted to conveyor side frame. 50 PSI recommended operating pressure with free air consumption of .001 cu. ft. per sensor operation.

Accumulation Zones – 4″ roller centers 36″, 40″, 44″, 48″, 52″, 56″ and 72″ long. 6″ roller centers 36″, 42″, 48″, 54″ and 72″ long. Frame lengths change with zone lengths.

Tread Rollers – 2-5⁄8″ diameter x 7 gauge steel, 11⁄16″ hex shaft.

Floor Supports – Higher or lower supports available, adjustable or fixed type.

Side Mounted Drive – Drive unit mounted to side of conveyor in lieu of underneath conveyor frame. 14″ minimum elevation to the top of roller.

Time Delay Restart – Allows for product to be unloaded from discharge zone of conveyor without immediate movement of next load into discharge zone.

Conveyor Speed – Constant and variable speeds between 10 and 70 FPM available.

Motor – Single phase, energy efficient, explosion proof, etc. Other HP available.

Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others.

Optional Loads – Capacity available to 6000 Ibs. unit loads.

Rollers Set High – Rollers set 1 ⁄4″ high above side rail. Frame is 11-3⁄8″ deep x 7 gauge formed steel channel.
