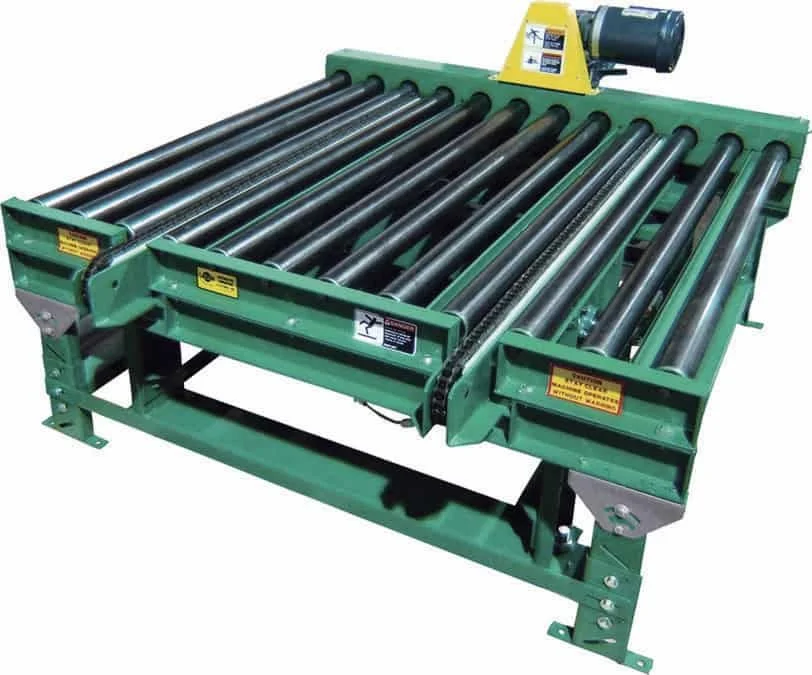

Air Operated Chain Transfer Conveyor

  • Capacity – 2,000 Ibs. unit load. (Higher capacities available.)

    Chain – Two strands of #60 high side bar roller chain; min. 10″ chain centers.

    Mounting – Designed to install in standard “251CRR” frames.

    Speed – 30 FPM constant.

    Cycles – Up to 4 cycles per minute.

    Air Requirements – Min. pressure 60 PSI, max. pressure 125 PSI. Free air consumption @ 60 PSI .035 cu.ft. per cycle.

    Electrical requirements – 120V, single phase, 60 Hz. Current draw – .07 amps, or 24VDC.

    Motor – 3⁄4 HP 230/460-3-60 TEFC motor.

    Electrical Controls – None furnished as standard.

    INSTALLATION NOTE: To eliminate contaminants in air supply line, a filter, regulator,

    (FR) should be installed prior to valve.
