HAND OPERATED BLADE / ROLLER STOP

Contact for Purchase

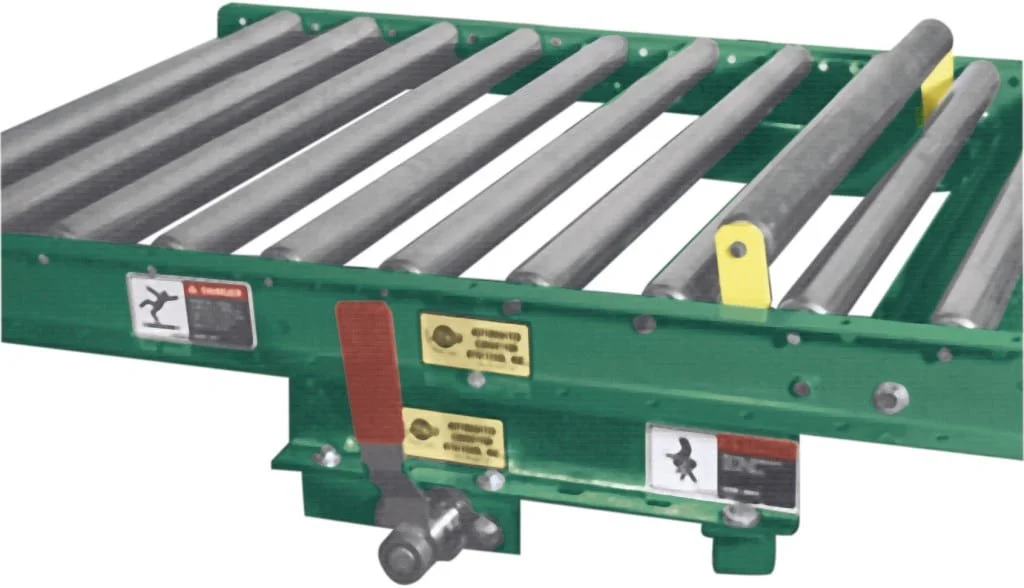

Hand Operated Blade Roller Stop

Applications / Features:

  • Hand Operated Stops are used where manual line control is required such as assembly workstations, shipping areas, etc.

  • Can be mounted to the underside of models 138SR, 190SR, 20SR, 190CAP, 138CAP, 190ZPA.

  • Capacity – Blade -150 Ibs., 1-3⁄8″ diameter roller – 50 Ibs., 1.9″ diameter roller -150 Ibs. All are live load capacities @ 60 FPM.

    Bearings – High capacity (2) bolt flange bearings.

    Operation – Hand operated lever to raise or lower stop can be used in normally up or down positions.

    Blade – 7 gauge formed angle 1″ x 1-1⁄2″ for 1-3⁄8″ conveyors – 1-1⁄2″ for 1.9″ and 2.0″ conveyors.

    Roller – 1-3⁄8″ diameter x 18 gauge galvanized steel roller for 1-3⁄8″ conveyors. 1.9″diameter x 16 gauge galvanized steel roller for 1.9″ and 2.0″ conveyors.

    Stroke – 2″ above rollers.
