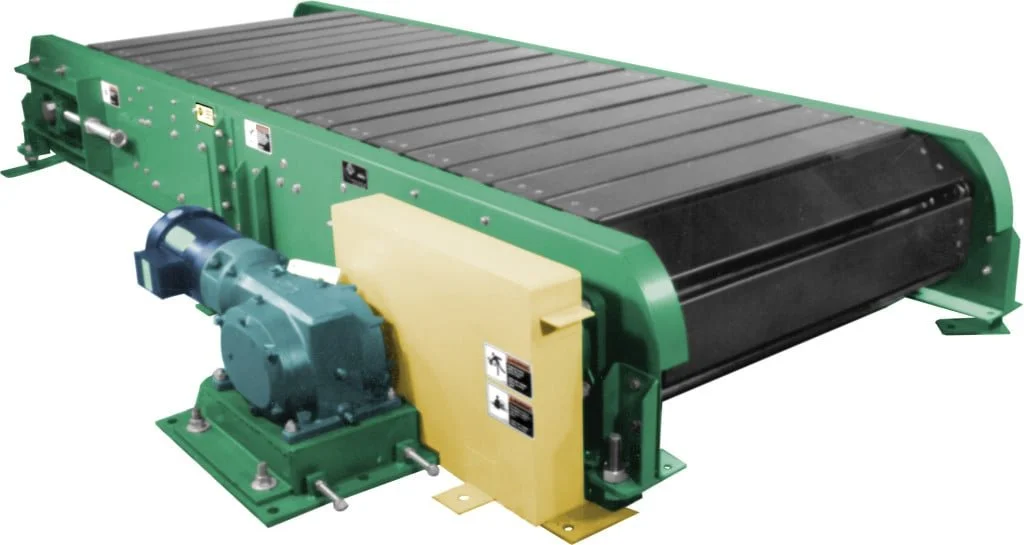

MODEL SL

Slats – 5-3/4″ x 10 guage formed slat standard, bolted to A-2 attachments on chain. Slat length is effective conveying surface.

Conveyor Frame – Heavy duty, powder painted 7 gauge, bolted construction.

Chain & Slat Return – Returns on angle track, supplied as part of conveyor framework.

Chain – Heavy duty 6″ pitch with A-2 attachments on each pitch.

Driving Sprockets – 6 Tooth SR 196 12″ pitch diameter.

Floor Supports – Supplied as part of conveyor framework, not adjustable. Specify height. 24″ minimum elevation.

Drive Shaft – 2- 15/16″ diameter CRS.

Tail Shaft – 2-7/16″ diameter CRS.

Take-Up – Mounted on tail end of conveyor for adjustment of chain tension.

Drive – Floor mounted at discharge end of conveyor.

Speed – 30 FPM constant.

Reducer – Heavy duty worm gear reducer.

Motor – 2 HP 230/460-3-60 TE motor.

Capacity – 400 pounds per foot maximum.

Slats – Heavier gauge and hardwood slats available.

Chain – 4″ pitch heavier duty chain available; inquire.

Dwell Station – Gravity section mounted level with slate surface. Allows product to be inspected, tested, etc., while conveyor remains running.

Speed – Other constant speeds and variable speeds available.

Motor – Single phase, energy efficient, explosion proof, etc. Other HP available.

Electrical Controls – Magnetic starters, push button stations; manual motor starters with overload protection, others.
